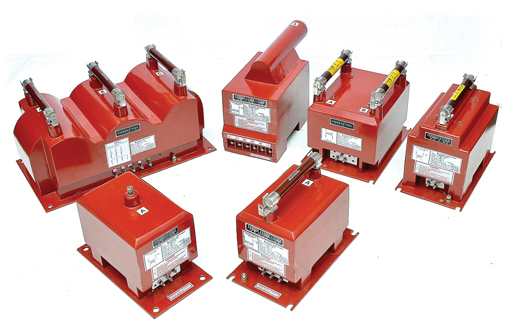

Technical Data - MV CT - Dry Type Cast Resin Insulated
| Highest Voltage for Equipment | : | Upto 40.5KV (1 min: 10-95KV, BIL: 20-200KV) |
| Rated Primary Current | : | 10A upto 8000A |
| Rated Secondary Current | : | 1 A or 5 A |
| Frequency | : | 50 or 60Hz |
| Rated short-time thermal current (1 sec) | : | 4; 6.3; 8; 12; 16; 20, 25;31.5; 40; 50; 63; 80; 100 KA |
| Accuracy of measuring winding | : | 0.1; 0.2; 0.2S; 0.5; 0.5S; 1; 3 |
| Facotr security | : | 5; 10 |
| Accuracy of Protecting winding | : | 5P; 10P.. overcurrent factor: 5; 10; 15; 20 |
| Special classes | : | PX (IEC 60044-1) - Uk, Rct, Ik |
| Secondary windings | : | Upto 6 |
| Location | : | Indoor or Outdoor dry type |
| Secondary Terminals | : | 8 to 12 |
