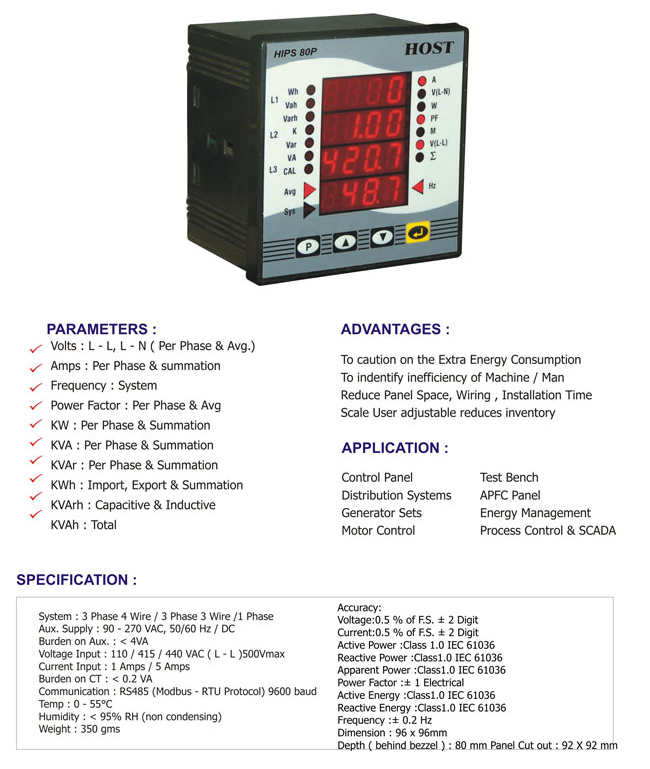

Features :

* State of Art Microcontroller Based Design.

* 4 Line Ultra Bright Red LED display to show phase wise & System Parameters on same page.

* Site Programmable CT & PT Ratio.

* True RMS measurement.

* Auto Scrolling Facility.

* Password protection.

* Eprom retains Energy Parameters on power fail.

* Monitors Import & Export Energy.

* Computer Interface (RS 485)

* Pulse Output for PLC / SCADA interface.

* Optional : Data Logging of all Parameters with Date & Time stamp (site programmable logging time interval).
