Wide range of Products

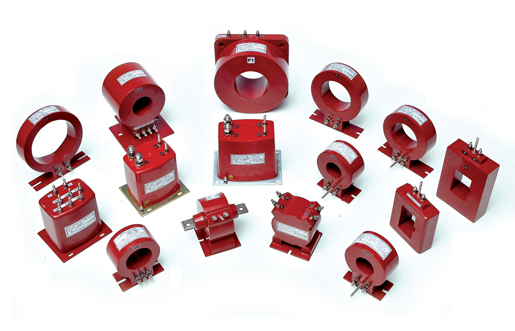

  • * L. T. Wound Type Tape Insulated Current Transformers
  • * L. T. Wound Type Resin Cast Current Transformers
  • * L. T. Bar Primary Type Tape Insulated Current Transformers
  • * L. T. Bar Primary Type Resin Cast Current Transformers
  • * L. T. Ring Type Tape Insulated Current Transformers
  • * L. T. Ring Type Resin Cast Current Transformers
  • * Core Balance Current Transformers
  • * L. T. Control Transformers up to 1000 KVA
  • * Interposing Current & Voltage Transformers
    • For varied applications like:
  • * Mounting in Switchgear - Air Insulated, Gas Insulated & Ring Main Units
  • * Mounting in Power & Distribution Transformers
  • * Cable Protection
  • * Low Voltage Systems
  • * With primary winding
  • * For cable
  • * For busbar
  • * For cable & busba

    • Data Sheet: Transformers are tailor made with following basic data

    Voltage System 0.72KV upto 1.2KV
    Rated Primary Current 1A upto 15000A
    Rated Secondary Current 1 A or 5 A
    Protection or Measurement 10P; 5P; 0.2;0.2s; 0.5; 0.5s; 1
    Number of cores Upto 6
    Burden Upto 150VA
    Window Size Cable Sizes : 30 - 650mm diameter Window Sizes 300 x 200 mm, 650 x 450mm, 20 x 10mm, 30 x 10mm, 40 x 10mm, 60 x 10mm, 80 x 10mm, 50 x 30mm, 60 x 30mm, 120 x 30mm.
